How to convert EPS and AI to SVG with Adobe Illustrator.
Separate the sources
1) For EPS files that contain multiple elements, please ensure that you create separate SVG files for each element.
2) The size of SVG files should not exceed 6,000px based on the longer side either horizontal or vertical dimension.
Adjust element

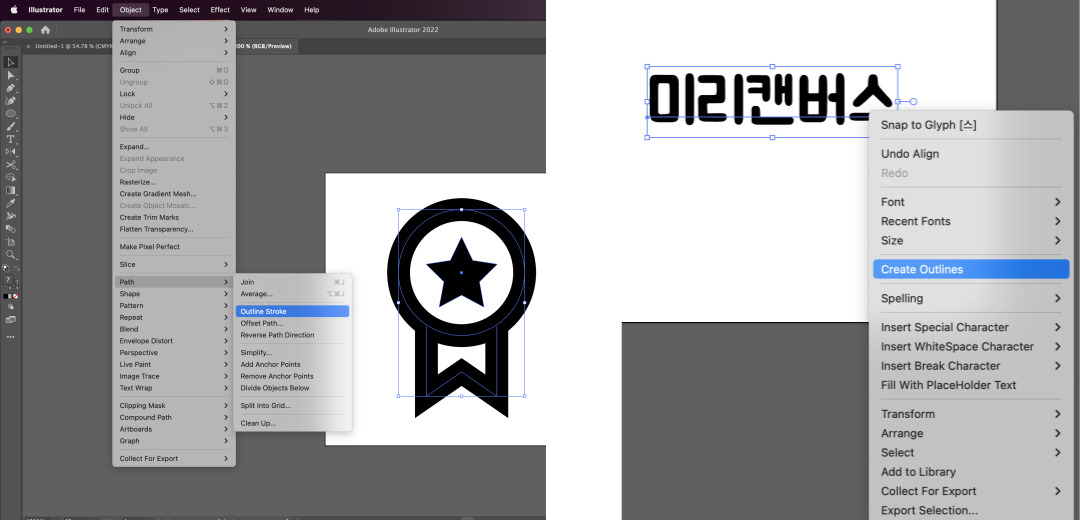

1) Make outlines with the Adobe Illustrator menu [Object > Path > Outline Stroke].
2) If it is text, make outlines by right-click and choose "create outlines" in Adobe Illustrator.

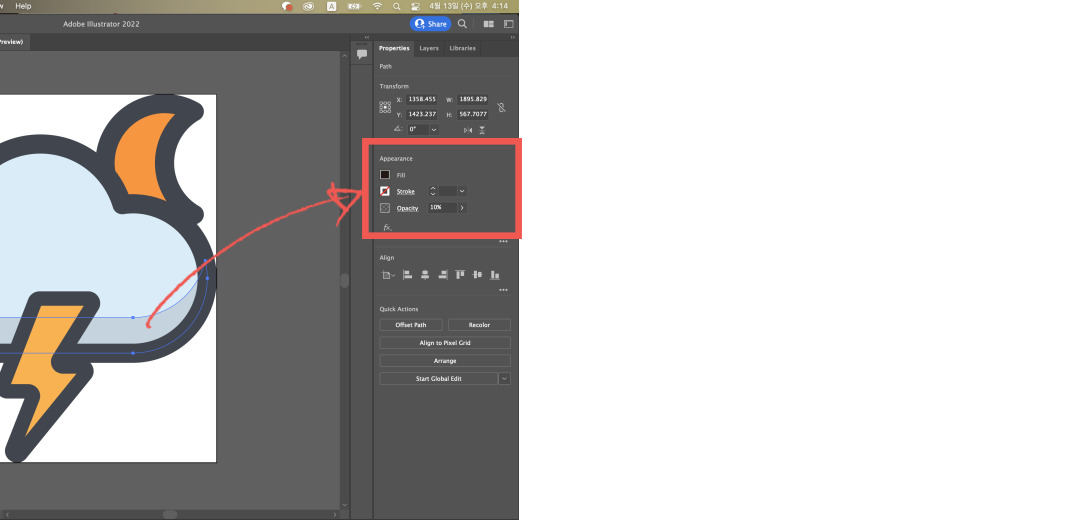

Adjust the Color code of each element.
Set the condition of black(#000000) in the Shadow area, white(#FFFFFF) in the Highlight area,
and adjust the Opacity.
* Prohibited colors
If you specify the color of the SVG (vector) element as #FFFFFFFF or #353840,
The background color is the same as the Pre-Canvas Normal/Dark Mode Editor,
so the element is not visible in the list of elements.
If you need to use a #FFFFFFFF or #353840 color for your design, use a different color in the Adobe Illustrator program and register it as SVG after replacement to change the color in the editor.
(Please note that SVG content type can be freely changed within the editor!)
Resize Artboard
1) Resize Artboards to fit the separated source in [Object > Artboard > Fit Artwork Bounds]
of Illustrator menu.
2) Apply Grouping after choosing entire elements in the layer.
Precautions when you make SVG element.
1) Do not use the pattern function.
2) Do not use the Clipping Mask function. If used, right-click > Release Clipping Mask.
3) Do not use the Swatches window.
4) Please include only vector elements in the SVG file. The bitmap image is PNG.
Double check! When you make an SVG element
1) Please check if you have done the outline stroke.
2) Please check if you have done Create Outlines.
3) Please check the program version when using Gradient.
CC version functionality enabled / CS5, CS6 version functionality disabled
Adjust lines and plane of elements.
1) Copy the entire elements to the other layer.
2) Make one element by Compiling Path Finder.
3) Put plane elements under the visible cracked part.
4) Check the remaining cracks on the MiriCanvas editor after setting Background > black.
Save as an SVG file
1) Remember to group all objects before saving the file.
2) SVG Profile is "SVG 1.1."
3) Please check the image below for details about saving options.
